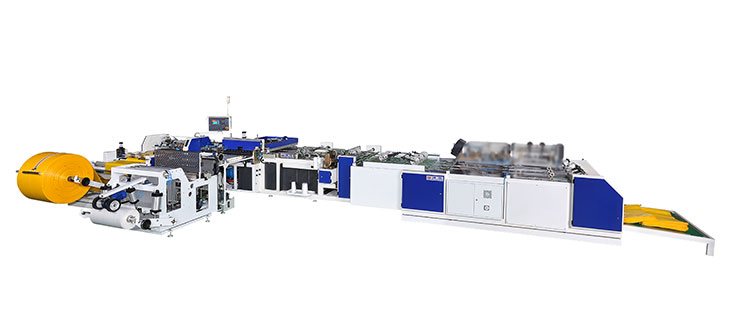

PP Woven Bag Fully Automatic Liner Inserting – Bag Top Heming Conversion Line (In-line process of Cutting-Liner Inserting – Sewing – Bag Top Hemming) Model: Liner-Hemming
-
All-In-One Multi-Functional Machine - Flexible Usage for Various Type of PP Woven Bag Processing On The Same Machine.
Available for Woven Bags:- With Liner Inserting-Cutting-Sewing and Bag Top Hemming Process
- With Cutting-Sewing and Bag Top Hemming Process Only (Without Liner Inserting)
- With Liner Inserting-Cutting-Sewing Only (Without Bag Top Hemming Process)
- Cutting-Sewing Process Only (Without Liner Inserting & Without Bag Top Hemming)
- Saving Manpower, Space and Saving Cultivated Training for Skilled Manuel Operators to the Maximum.
- Producing Finished Bags with Conformed & Unified Quality with Stable Performance.
- Experiencing Clean Process of Bag Top Hemming. Largely Reducing Hand-Touching on the Bag Top Area.
- Highly Synchronized Machine for Easy Setup and Quick Bag Size Changeover.
- A Total-Solution Machine for PP Woven Bags with Final Products Applicable in a Big Variety Market.
~ Let the Machine do it for you !~
Model | Liner - Hemming | |
》 Diameter of Unwinding Cloth | 1400 mm Maximum. | |
With Liner Inserting-Cutting-Sewingand Bag Top Hemming Process | ||
》 Bag Width Range | 450 - 750 mm Applicable | |
》 Cutting Length | 580 - 1200 mm Applicable | |
》 Cutting Length Accuracy | ± 1 mm | |
》 Production Capacity |
Max. 17 Bags/Min. (Depends on Bag Size/Bag Condition, and actual production situation.) |
|
Cutting-Sewing-Bag Top Hemming Only (Without Liner Inserting) |
||
》 Width of Unwinding Cloth | 430 - 750 mm Applicable | |
》 Cutting Length | 580 - 1300 mm Applicable | |
》 Cutting Length Accuracy | ± 1 mm | |
》 Production Capacity |
Max. 18 Bags/Min. (Depends on Bag Size/Bag Condition, and actual production situation.) |
|
Liner Inserting-Cutting-Sewing Only (Without Bag Top Hemming Process) |
||
》 Width of Unwinding Cloth | 450 - 750 mm Applicable | |
》 Cutting Length | 580 - 1200 mm Applicable | |
》 Cutting Length Accuracy | ± 1 mm | |
》 Production Capacity |
Max. 36 Bags/Min. (Depends on Bag Size/Bag Condition, and actual production situation.) |
|
Cutting-Sewing Process Only (Without Liner Inserting & Without Bag Top Hemming) |
||
》 Bag Width Range | 350 - 800 mm Applicable | |
》 Cutting Length | 560 - 1300 mm Applicable | |
》 Cutting Length Accuracy | ± 1 mm | |
》 Production Capacity |
30~45 Bags/Min (Depends on Bag Size/Bag Condition, and actual production situation.) |
Bag Top Hemming with Liner Inserted
Bag Top Hemming without Liner
